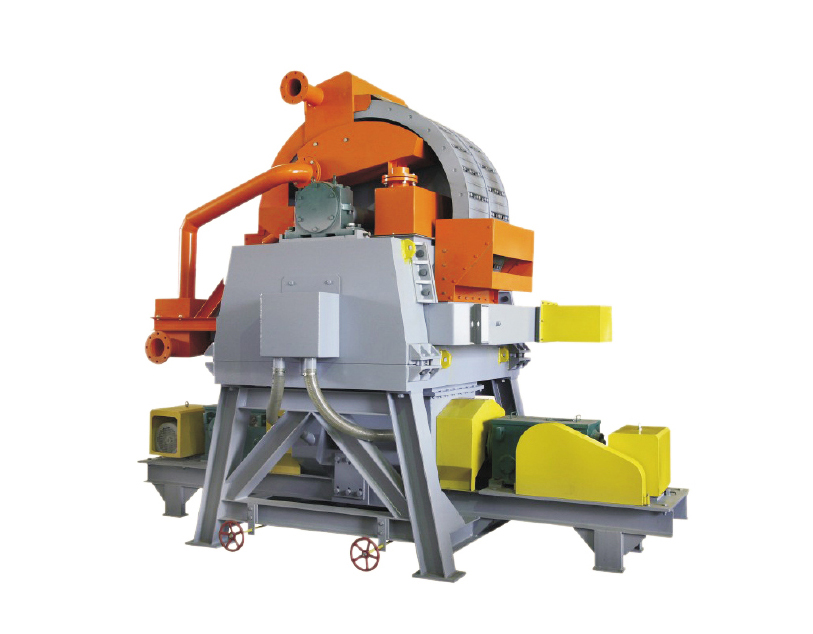

High Gradient Magnetic Separator

  • Product name : High Gradient Magnetic Separator
  • Product Categories : Mineral Processing Equipment
  • Company name : Shandong Zhongse Heavy Industry Co., Ltd.
  • Email:sdzs@sdzsit.com
  • WhatsApp: Yu Jinhai
Details

Application

errous metal ore: Recovery of martite hematite limonite siderite chromite manganese.

Non-ferrous metal ore: Recovery of fine - grained black tungstenite in tungsten - containing quartz veins, separation of pyrrhotite in tin - polymetallic sulfide ore, treatment of cassiteriate from

wolframite and limonite, separation of tunstite from wolframite and garnet.

Rare earth metal: Recovery of ilmenite, tantalum and niobium ore, iron lithium mica, monazite, xenotime. Separation of spodumene from hornblende, tantalum from niobium iron ore and fine spar, ilmenite from artificial rutile, rutile from garnet, hornblende.

Non-metal ore: Glass ceramic industry raw materials such as purification of quartz, feldspar, kaolin, treatment of high temperature refractory such as iron-remove or amphibole, mica, tourmaline, garnet removal of sillimanite, andalusite, orchid spinel and removal of hornblende.

Other area: Wastewater treatment of iron and steel plant and power plant. Cleaning chemical raw materials contaminated with catalyst.

2、Technical Feature

(1) Multi-gradient matrix technology
The matrix is the key part influencing separation index of high gradient magnetic separator. The principle of magnetic separation is the means that grab the magnetic ore on the matrix to separate the non-magnetic from ore.
(2) No stepping
Dismiss the stepping influence during the rotation of ring under the strong magnetic field utilizing the special technical treatment for the ring and matrix.
(3) High efficiency air-water discharging device
Under the certain water capacity, this device could increase the flushing force, improve the discharging efficiency, save the water consumption, increase the concentrate pulp density and decrease the pressure of next stage.
(4) Optimal design of magnet structure
More even of separation magnetic field which is favorable of recovery of residue.
