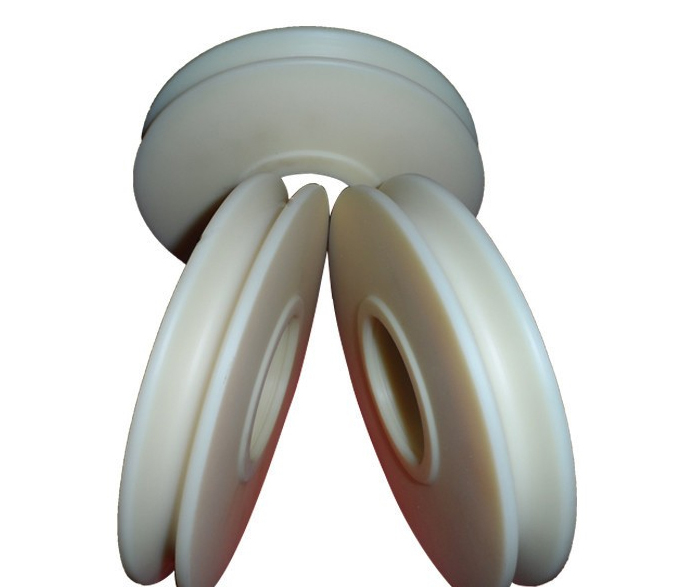

Nylon bushing wear resistant spinning wheel : nylon has good comprehensive properties, including mechanical properties, heat resistance, wear resistance, chemical resistance and self lubrication. It has low friction coefficient and is easy to process. It is suitable for filling and strengthening modification with glass fiber and other fillers, improving performance and expanding application scope. Secondly, it has overload protection function. When the torque is too large, the gear itself is damaged and the power transmission is interrupted, so as to protect the lower level device or personal safety, Reduce losses.
Because nylon has non-toxic, light weight, excellent mechanical strength, wear resistance and good corrosion resistance, it is widely used to replace copper and other metals to manufacture bearings, gears, pump blades and other parts in machinery, chemical industry, instrument, automobile and other industries. Polyamide has high strength after melt spinning. It is mainly used as synthetic fiber and can be used as medical suture
It is self-lubricating nylon in the true sense. A liquid lubrication system is formed in the casting process, which significantly improves the service life of oil nylon bearing, reaching 6 times that of ordinary nylon 6 bearing and 25 times that of phosphor bronze bearing! The lubricant contained in oil nylon will not be lost, adsorbed and exhausted, and it does not need to be added again. Lubricant in oil nylon greatly broadens the application range of nylon, especially for some parts that cannot be lubricated.
Density: 1.15g/cm3
Impact strength: 8.5kj/m2
Tensile strength: 80MPa
Shore D hardness: 80-85
Compressive strength: 110MPa
Friction coefficient: 0.1-0.3 on steel surface
Continuous working temperature: - 80-125 ℃
Shandong libing new material can customize and process all kinds of nylon processing parts / rollers according to the drawings and requirements
