UHMWPE Specifications:
Property
Unit
Value
Density
g/cm3
0.93-0.96
Average molecular weight
g/mol
3million- 10 million
Tensile strength (23°C in air)
MPa
22
Breaking strength
MPa
42
Tensile strain at break
%
600
Charpy impact strength (notched)
mJ/mm2
No break
Ball indentation hardness
N/mm2
42
Shore D hardness
--
65-70
Abrasion
%
70-80, steel = 100
Static Friction Coefficient
--
≤0.16
Kinetic Friction Coefficient
--
≤0.10
Water Absorption
--
NIL
Elongation at break at 23 degress
%
≥300
Temperature resistance
°C
-269 to +85
Melt Temperature
°C
130-140

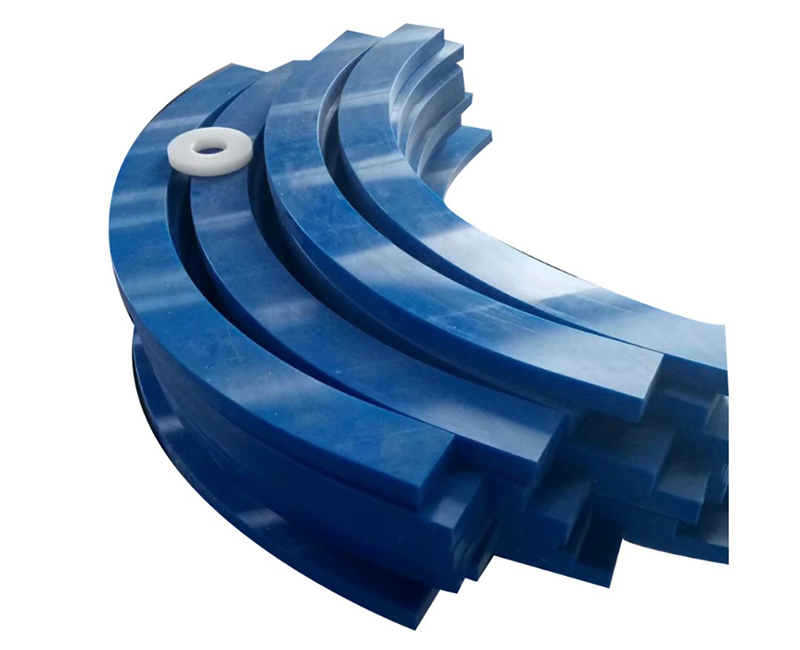

We offer an extensive range of extruded and machined plastic profiles and German UHMWPE Wear Strip such as under chain track profiles, plastic wear strips and plastic conveyor chain tensioner for use in power transmission, conveying, elevating and in materials handling applications. Traditional steel guide profiles lead to heavy wear on steel chain links plates and rollers, requiring constant lubrication. UHMWPE Wear Strip can offer unique sliding and low wear properties to help resolve these problems.
