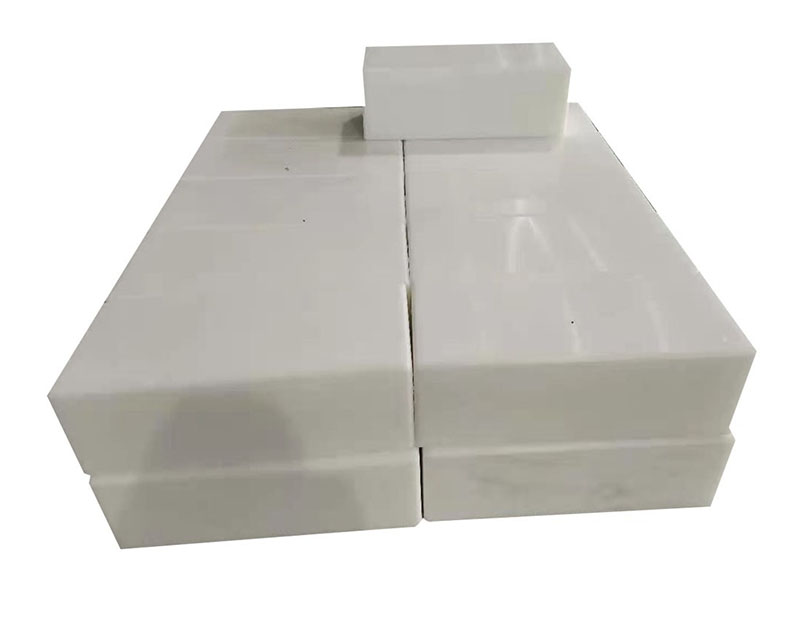

Anti static UHMWPE 1000 sheet
We can supply kinds of UHMWPE sheets with special property , like :
anti static UHMWPE sheets
anti UV UHMWPE sheets
anti flame UHMWPE sheets
glass filled UHMWPE sheets
boron added UHMWPE sheets
High wear UHMWPE sheets
Application of UHMWPE sheets :
1. Chemical Engineering: Corrosion and wear resistantance mechanical parts
2. Thermal power: coal handling, storage of coal, warehousing chute lining
3. Coal processing: sieve plate, filter, U-underground coal chute lining.
4. Concrete: cement raw and finished product silo silo lining
5. Grain: food storage or chute lining.
6. Mining: sieve plate, chute linings, wear anti-bonding part.
7. Food industry: star-shaped wheel, transmission timing bottle screw, bearings, guide rollers, guides, slide blocks, etc.
8. Some kind of fender panels and front face of fender.
Standard size of UHMWPE sheets :
5040x1330 mm
4730x1230 mm
3050x1220 mm
6050x1820 mm
3030x1550 mm
4520x2000 mm
3050x3050 mm
2000x1000 mm
6000x2000 mm
|
Physical Properties
|
Test Method
|
Unit
|
Value
|
|
Density
|
ASTMD792
|
g/cm3
|
0.93 -0.97
|
|
Water Absorption
|
ASTMD570
|
%
|
< 0.01
|
|
Mechanical Properties
|
Test Method
|
Unit
|
Value
|
|
Max Working Temperature
|
-
|
°C
|
90
|
|
Minimum Working Temperature
|
-
|
°C
|
-269
|
|
Tensile Strength
|
ASTMD638
|
MPa
|
40
|
|
Elongation at Break
|
ASTMD638
|
%
|
300-500
|
|
E-Modulus
|
GB1040-79
|
MPa
|
820
|
|
Bending Strength
|
GB9341-88
|
MPa
|
26
|
|
Bending E-Modulus
|
GB9341--88
|
MPa
|
760
|
|
Compression Strength (deformation 10%)
|
ASTMD695
|
MPa
|
21-25
|
|
Compression E-Modulus
|
GB1041-79
|
MPa
|
550
|
|
Shear Strength
|
GB1041-79
|
MPa
|
33
|
|
Hardness
|
ASTMD240
|
Shore D
|
65 -68
|
|
Coefficient of Friction
|
-
|
-
|
0.12-0.15
|
|
Dynamic Coefficient Friction
|
GB10006-88
|
-
|
0.07-0.11
|
|
Thermal Properties
|
Test Method
|
Unit
|
Value
|
|
Coefficient of Linear Expansion
|
GB1036-89
|
°C-1
|
1.5×10-4
|
|
Coefficient of Heat Conductivity ( 23 °C )
|
GB3399-82
|
Cal/cm sec °C
|
8.5×10-4
|
|
Special Heat ( 23 °C)
|
GB3399-82
|
Cal/g°C
|
0.44
|
|
Electrical Properties
|
Test Method
|
Unit
|
Value
|
|
Volume Resistivity
|
GB1410-78
|
Ohm cm
|
>1015
|
|
Surface Resistivity
|
GB1410-78
|
Ohm
|
>1015
|
|
Dielectric Constant ( 1MHZ )
|
GB1409-78
|
-
|
3
|
|
Dielectric Strength
|
GB1408-78
|
Kv/mm
|
70
|
