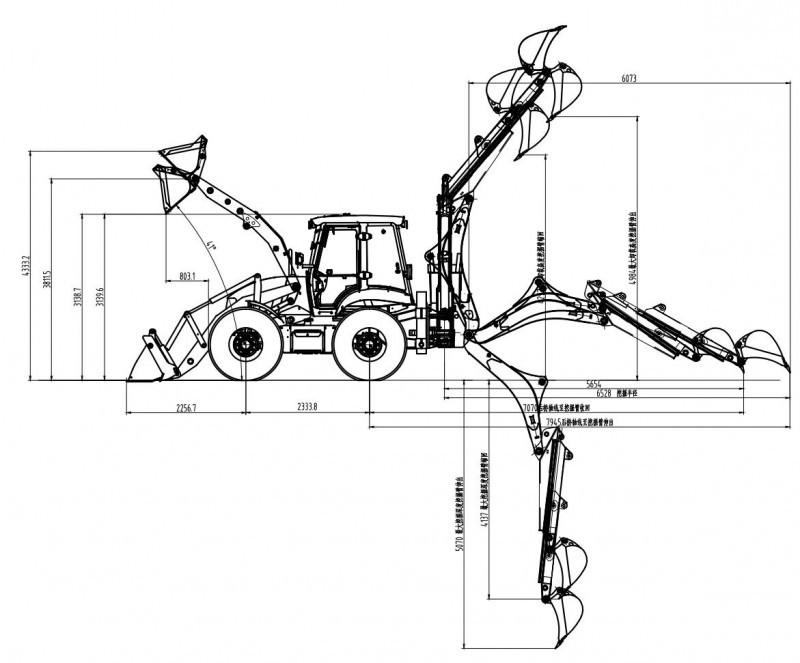

Total length(bucket at ground) |
6400±80mm |
|
|
（Total width ) |
2450±20mm |
|
|
Bucket width) |
2380mm±20mm |
|
|
otal height (cabin top) |
32500±10mm |
|
|
Total height (digging boom top) |
38000 ±20mm |
|
|
Wheel base) |
2250±10 mm |
|
|
Wheel tread) |
2000 ±10mm |
|
|
Load main technical parameter) |
||
|
Rated load) |
2500KG |
|
|
Operating weight) |
9300kg |
|
|
Rated bucket capacity) |
1.2m³ |
|
|
Max. Dumping height (41o dumping angle) |
3050±50 mm |
|
|
Dumping distance) |
700±20 mm |
|
|
Turning radius) |
Tires outside |
5750±50mm |
|
Digging main technical parameters) |
||
|
Rated digging bucket capacity) |
0.3m³ |
|
|
Max. Digging depth) |
3820±20 mm |
|
|
Max. Digging radius) |
5345±20mm |
|
|
Max. Loading height) |
3740±20mm |
|
|
Max. Digging force) |
5100kgf |
|
|
Max.Digging height) |
5470 ±20mm |
|
|
Lifting force at Max. Digging radius) |
1220kg |
|
|
Engine |
||
|
Engine model) |
YCD4J22T-115 |
|
|
Cooling type) |
Water cooling) |
|
|
Rated power) |
85 (kW) |
|
|
Displacement) |
4.8(L) |
|
|
Rated speed) |
2600(r/min) |
|
|
Max. Torque) |
400N |
|
|
Manufacturer) |
YUCHAI |
|
|
Transmission |
||
