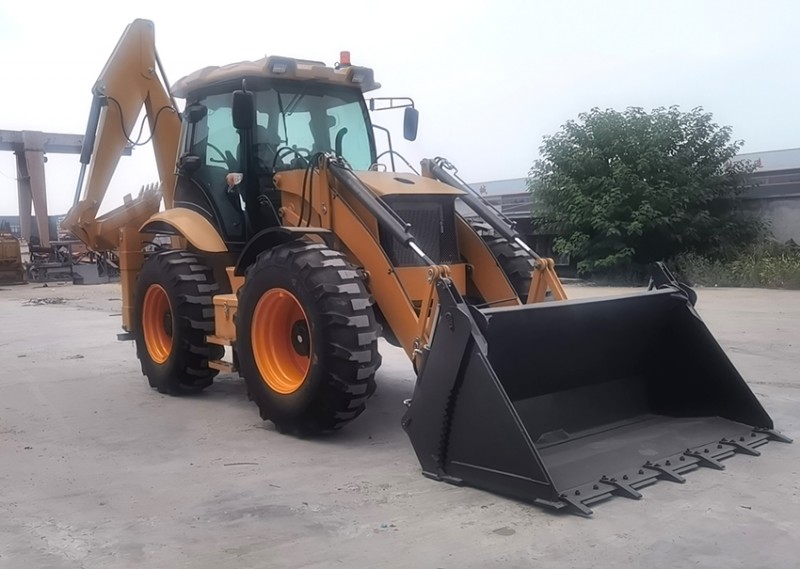

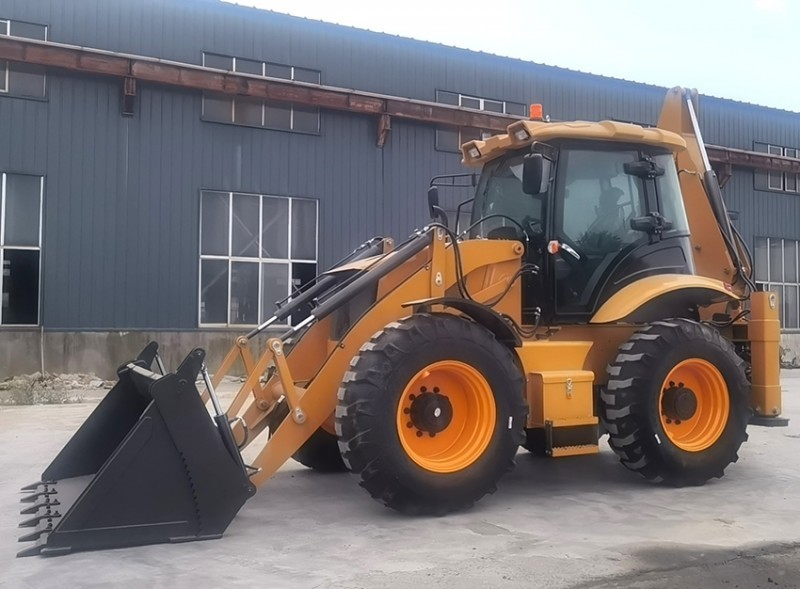

The Technical Parameter of 4AM Backhoe Loader |
|||||||
|
l Overall Dimension |
|||||||
|
1 |
Length(with bucket on ground) |
6450mm |
|||||
|
2 |
Overall width（at stabilizer ） |
2400mm |
|||||
|
3 |
Load Bucket width |
2400mm |
|||||
|
4 |
Height(To the top of the cab) |
3120mm |
|||||
|
5 |
Height(To the top of the digging pole) |
3940mm |
|||||
|
6 |
Wheel base |
2335mm |
|||||
|
7 |
Back wheel Tread |
2139mm |
|||||
|
l Main Loading Technical Specification |
|||||||
|
1 |
Rated load |
3000KG |
|||||
|
2 |
Operating weight |
8000kg |
|||||
|
3 |
Rated bucket capacity |
1.7m³ |
|||||
|
4 |
Max. dump clearance |
3100mm |
|||||
|
5 |
Dump reach |
870mm |
|||||
|
6 |
Radius of turn（Outside of bucket） |
5750mm |
|||||
|
l Main Digging Technical Specification |
|||||||
|
1 |
Rated digging bucket capacity |
0.35m³ |
|||||
|
2 |
Max. digging depth |
4100mm |
|||||
|
|
Optional digging depth(telescopic digging boom) |
5100mm |
|||||
|
3 |
Max. digging radius |
5345mm |
|||||
|
4 |
Max. dumping height |
3740mm |
|||||
|
5 |
Max. Digging Height |
5470mm |
|||||
|
6 |
Lifting force at Max. digging radius |
1220kg |
|||||
|
l Diesel engine |
|||||||
|
1 |
Brand/Model |
YUCHAI YCD4J22T-125 |
|||||
|
2 |
Type |
In Line，Direct injection，Four-Stroke，Water Cooling |
|||||
|
3 |
Rated output |
91(KW) |
|||||
|
4 |
Optional engine |
YUCHAI 110KW YCD4J33T6-140 |
|||||
|
l Transmission System |
|||||||
|
1 |
Torque Converter |
Model |
315 |
||||
|
Cooling type |
Pressure oil circulating |
||||||
|
2 |
Gearbox |
Type |
Synchromesh mechanical shift |
||||
|
3 |
Drive axle |
Type |
Four wheel drive |
||||
|
4 |
Gear shift position |
4 F、 4 R |
|||||
|
5 |
（F/R）km/h |
F1，5km/h；F2，10km/h； |
|||||
|
6 |
Size of tire |
16.9-28 |
|||||
|
The hydraulic system |
|||||||
|
1 |
Working pump discharge |
63ml/r |
|||||
|
2 |
Working pump pressure |
22Mpa |
|||||
|
l Oil Capacity |
|||||||
|
1 |
The hydraulic oil tank |
125L |
|||||
|
2 |
Diesel fuel tank |
125L |
|||||
|
Packing Quantity（1*45HC） |
2Units |
||||||
|
Standard Configuration: ：Front shovel with bucket, rear excavator with bucket, luxury interior cabin/fan/LED lights/large rearview mirror/breakaway hammer/fire extinguisher/push-pull window/sunroof/heating, luxury adjustable rotating seat, adjustable dashboard, color LCD display, front shovel rear excavator hydraulic pilot operation, Yuchai 91KW engine, front and rear 16.9-28 vacuum tires, special 315 overall double high-low speed gearbox, four-wheel steering, four-wheel drive, crab walking, three steering modes can be switched at will, H-frame support legs. |
|||||||
|
The parameters or configuration are subject to change without notice. |
|||||||
