The Technical Parameter of 420F Backhoe Loader |
|
|
Overall Operating Weight |
10700KG |
|

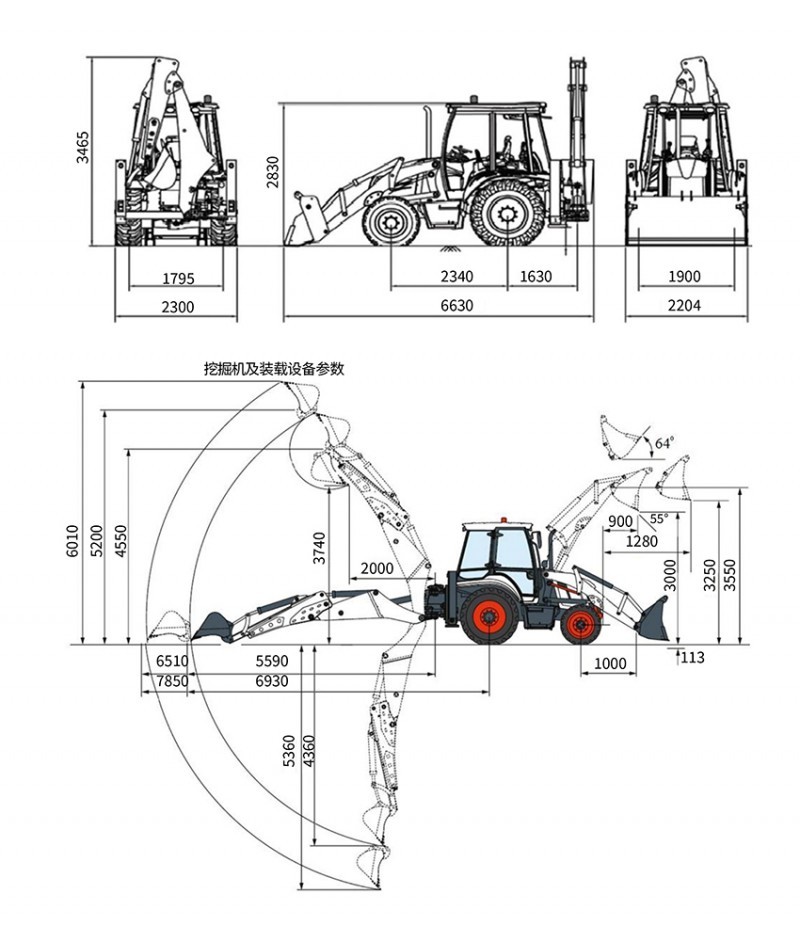

Transport Dimension |
|
|
mm L*W*H |
7600×2380×2890mm |
|
Wheel base |
2250mm |
|
Min. Ground Clearance |
300mm |
|
Bucket Capacity |
1.5m3 |
|
Breakout Force |
38KN |
|
Loading Lifting Capacity |
2800KG |
|
Bucket Dumping Height |
2800mm |
|
Bucket Dumping Distance |
1062mm |
|
Backhoe Capacity |
0.3m3 |
|
Max. Digging Depth |
4100mm |
|
Optional Digging Depth |
5300mm |
|
Swing Angle of backhoe |
190o |
|
Max. Pulling Force |
39KN |
|
Engine |
|
|
Brand/Model |
WeiChai Turbo engine |
|
Type |
In Line，Direct injection，Four-Stroke，Water Cooling |
|
Rated Power |
70KW |
|
Optional Engine |
YUCHAI/YCD4T33T6-115(85KW） |
|
Steering System |
|
|
Steering Angle |
±36 o |
|
Min. turning radius |
6581mm |
|
Pressure of the system |
12Mpa |
|
Axle |
|
|
Brand |
FEICHENG YUNYU |
|
Main Transmission Type |
Double Reduction |
|
Final Reducer |
Single Stage Final Reducer |
|
Rated Loader of Axle |
4/10.5t |
|
Transmission System |
|
|
Torque Converter |
|
|
Model |
YJ280 |
|
Type |
Single-stage Three Elements |
|
Cooling Method |
Oil-cooling Pressure Circulation |
|
变速箱Gearbox |
|
|
Type |
Fixed Shaft Power Transmission |
|
Gears |
Four Gears Ahead, Four Gears Astern |
|
Max.Speed |
30Km/h |
|
Tyre |
|
|
Model |
（F）14-17.5 |
|
Pressure of Front wheel |
0.3Mpa |
|
Pressure of Back Wheel |
0.4 Mpa |
|
Brake System |
|
|
Service Brake |
Air Over Oil Caliper Brake |
|
External Type |
|
|
Self-regulation |
|
|
Self-balance |
|
|
Emergency Brake |
Operation Power Implementing brake |
|
Manual Operation Power Terminating Brake |
|
|
Hydraulic System |
|
|
Pressure of Hydraulic System |
22Mpa |
|
Digging Power of Excavator Grab |
46.5KN |
|
Digging Power of Dipper |
31KN |
|
Bucket Lifting Time |
5.4S |
|
Bucket Lowering Time |
3.1S |
|
Bucket Discharge Time |
2.0S |
|
Packing Quantity（1*40HC） |
2Units |
|
Standard：Standard Configuration: Front shovel with bucket, rear excavator with bucket, luxury interior cabin/fan/LED lights/large rearview mirror/breakaway hammer/fire extinguisher/push-pull window/sunroof, heating, luxury adjustable rotating seat, adjustable dashboard, LCD display, hydraulic pilot operation, Yunnei 76kW, 14-17.5 vacuum front tires, 19.5L-24 vacuum rear tires, special 280 overall double high-low speed gearbox, front wheel Yunyu steering drive axle, four-wheel drive, A-frame support legs. |
|
|
The parameters or configuration are subject to change without notice. |
|
