PRC series of drop-bottom car |
|||
|
Operative Standard MT389-1995 Mine tunnel man-bus technical conditions |
|||
|
Model |
The standard number |
||
|
PRC12-6/3 |
MCC070055 |
||
|
PRC18-7/3 |
MCC070052 |
||
|
PRC18-9/3 |
MCC070056 |
||
|

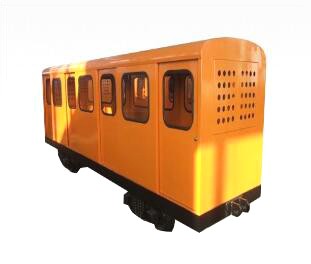

This series of tunnel man-buses are used in the underground mining horizontal tunnel and to transport the workers .It can be used in single one and in groups . It can save the time of human transportation and improve the working environment of the workers . |
|||
|
|
|
PRC18 |
|
|
The number of passengers |
|
18 |
|
|
Maximum speed m/s |
|
3 |
|
|
Maximum drawbar pull KN |
|
30 |
|
|
The minimum curve radius m |
|
8 |
|
|
Bogie center distance mm |
|
1500 |
|
|
Track gauge mm |
|
750 |
|
|
Weight kg |
|
1800 |
|
|
Outline dimension |
Length mm |
4280 |
|
|
|
Width mm |
1300 |
|
|
|
Height mm |
1525 |
|
