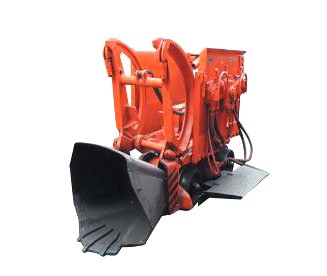

Z series rock loader is one kind of rail wheel light loading equipment used for tunneling and mining field . It has these characters : compact structure, strong adaptability, reliable work, convenient operation and repair . It can load the rocks ，gravel, iron ore, gold ore, granite and so on . The maximum diameter of the rocks is about 500 mm . When it is 100-400 mm , its loading rate is the best . It can be used in various mine roadway ( the slope is ≤ 8°）. It is the bucket type , front loading rear unloading and self-propelled . Its power sources are pneumatic and electricity . And the Z-20 series rock loader won the title of first -grade product Shandong province and the ministry of machinery industry . And Z-30AW rock loader is the national patent product .
|
Model |
ZQ-26 |
|
|
Loading capacity m3h |
40-50 |
|
|
Bucket volume m3 |
0.26 |
|
|
Loading width m |
2.7 |
|
|
Track gauge mm |
when the track gauge is 750 ,762 mm， please make a note when booking |
|
|
Power |
The wind motor |
|
|
Walking Power KW |
10.5 |
|
|
Bucket Power KW |
15 |
|
|
Uploading height mm |
1250 |
|
|
Machine Dimensions mm |
a （when the bucket is put down |
2375 |
|
b （when the bucket is put down） |
1380 |
|
|
H （when the bucket is working ） |
2240 |
|
|
H （when the bucket is put down） |
1455 |
|
|
Machine weight kg |
3700 |
|
