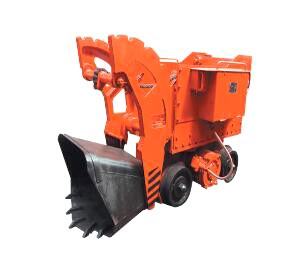

Z series rock loader is one kind of rail wheel light loading equipment used for tunneling and mining field . It has these characters : compact structure, strong adaptability, reliable work, convenient operation and repair service. It can load the rocks， gravel, iron ore, gold ore, granite and so on . The maximum diameter of the rocks is about 500 mm . It can be used in various mine roadway ( the slope is ≤ 8°）. It is the bucket type , front loading rear unloading and self-propelled . Its power sources are pneumatic and electricity . And the Z-20 serious rock loader won the title of first -grade of ministry of machinery industry product . And Z-30AW rock loader is the national patent product .
|
Model |
Z-30AW |
|
|
Loading capacity m3h |
50-60 |
|
|
Bucket volume m3 |
0.3 |
|
|
Loading width m |
2.4 |
|
|
Track gauge mm |
when the track gauge is 750 ,762 mm， please make a note when booking |
|
|
Power |
Electrical motor |
|
|
Walking Power KW |
15 |
|
|
Bucket Power KW |
15 |
|
|
Uploading height mm |
1370 |
|
|
Machine Dimensions mm |
a （when the bucket is put down |
2620 |
|
b （when the bucket is put down） |
1300 |
|
|
H （when the bucket is working ） |
2260 |
|
|
H （when the bucket is put down） |
1545 |
|
|
Machine weight kg |
4600 |
|
