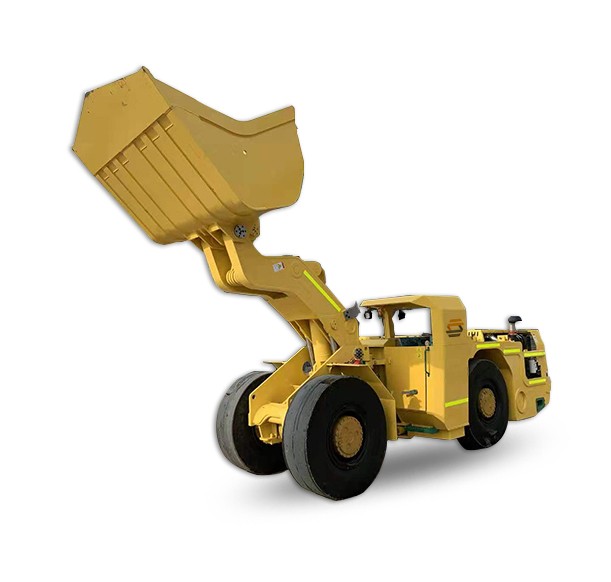

3 m³ underground internal combustion scraper
Product Overview: WJ3B is a 3m³ diesel scraper with a load capacity of 6 tons, specially designed for medium and small underground metal mines, suitable for roadways with a width of 3 meters. The main components of the WJ3B scraper are all high-end configurations of internationally renowned brands, and hydraulic pilot ratios are used. The boom adopts a high-strength and light-weight box structure, and the frame adopts an advanced overall processing technology, which makes the equipment have a longer service life.
Performance characteristics: Deutz imported high-power, low-pollution engine; fully hydraulic pilot power steering, central articulation, driven by two double-acting cylinders; American DANA torque converter and power shift gearbox, high quality, low failure rate ; Normally closed wet drive axle, imported anti-skid differential; American MICO brake, reliable safety guarantee; American Parker multi-way valve, steering valve, imported gear pump.
Main technical parameters of the whole machine:
| No. |
Item |
Parameter |
|
1 |
Bucket capacity |
3 m³ |
|
2 |
Rated load |
6t |
|
3 |
Maximum shoveling force |
≥100KN |
|
4 |
Maximum drawbar pull |
≥120KN |
|
5 |
Maximum unloading height |
1824mm |
|
6 |
Minimum unloading distance |
1595mm |
|
7 |
Unloading angle |
40° |
|
8 |
Minimum ground clearance |
≥280mm |
|
9 |
Departure angle |
16° |
|
10 |
Swing angle of rear axle |
±7°-±10° |
|
11 |
Minimum turning radius (outside) |
≤6800mm |
|
12 |
Running speed |
First gear：4.5km/h |
|
Second gear：9km/h |
||
|
Third gear：15km/h |
||
|
Fourth gear：22km/h |
||
|
13 |
Hydraulic torque converter |
DANA C270 series |
|
14 |
Power transmission |
DANA R32000 series |
|
15 |
Drive axle |
American Dana 16D (Rigid planetary drive axle of NO-SPIN anti-skid differential) |
|
16 |
Braking system |
Spring brake, hydraulic release |
|
17 |
Diesel engine model/Power |
DEUTZ BF6M1013EC/165kW |
|
18 |
Dimensions in transportation state (length×width×height) |
8914×2168×2310mm |
|
19 |
Total Weight |
20.5t |
