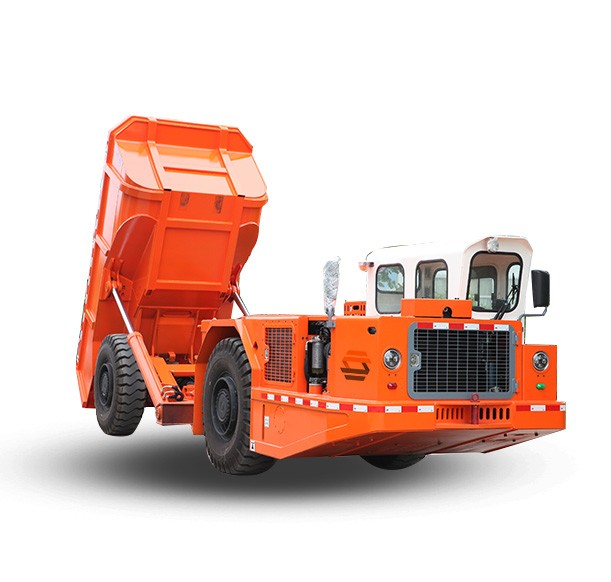

The DRUK-15 ton truck is a compact underground mining truck with a carrying capacity of 15 tons. It is equipped with a central articulated swing device and can be used for 3×3 meters underground mine roadway transportation. The new design of DRUK-15 not only improves production efficiency, but also improves the safety, maintainability and operating comfort of underground transportation, mining and construction operations. This mining truck is maneuverable and flexible on slopes. The truck is equipped with a reliable and powerful Volvo three-stage diesel engine with an excellent power-to-weight ratio.
Main technical specifications and parameters
|
No. |
Item |
Parameter |
|
1 |
Standard bucket volume |
7.5 m³ |
|
2 |
Rated load |
15000kg |
|
3 |
Carriage unloading angle |
70° |
|
4 |
Approach angle |
15° |
|
5 |
No-load operating weight |
16000kg |
|
6 |
No-load front axle load |
11200kg |
|
7 |
No-load rear axle load |
4800kg |
|
8 |
Full load operating weight |
31000kg |
|
9 |
Full load front axle load |
14880kg |
|
10 |
Full load rear axle load |
16120kg |
|
11 |
Swinging angle |
±8° |
|
12 |
Minimum turning radius |
4420±150mm（inside），7350±150mm（outside） |
|
13 |
ear |
Electronic control shift 4 gears forward & 4 gears back |
|
14 |
Hydraulic torque converter |
C270 series |
|
15 |
Power transmission |
RT32000 series |
|
16 |
Drive axle |
Spring brake hydraulic release rigid axle Front axle KesslerD81/ DANA 16D Standard differential Rear axle KesslerD81/ DANA 16D Standard differential |
|
17 |
Braking system |
Hydraulic release, spring brake |
|
18 |
Diesel engine model/Power |
VOLVO TAD850VE 160 kW @ 2200rpm/1060 Nm @ 1350 rpm 1060 Nm @ 1350 rpm/7.7 L |
|
19 |
Dimensions (length x width x height) |
8500×1980×2300mm |
