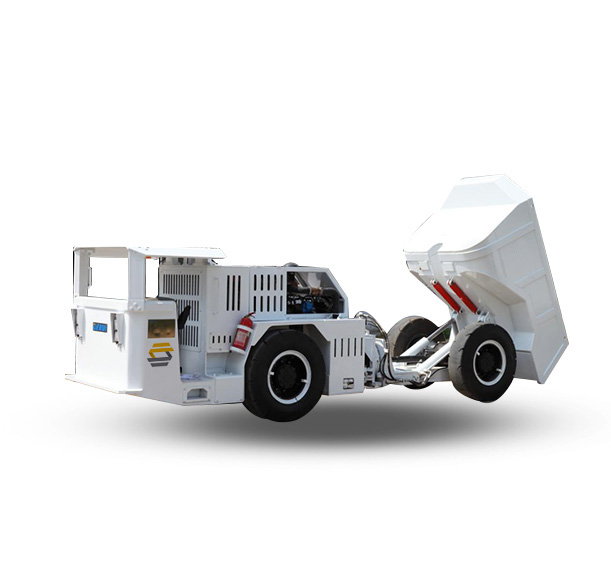

UK-8 underground ore carrier is mainly used in underground mines to transport loose materials after blasting. It can also be used in railway, highway and water conservancy tunnel engineering, especially suitable for poor working conditions, narrow, low and muddy working surface of the work site. The power system of this machine adopts the German DEUTZ engine, which is relatively advanced in the world, and is equipped with the exhaust muffler purifier. The transmission system selects the American DANA company's hydraulic torque converter and the power shift gearbox, which is easy to operate and runs smoothly. The brake system adopts spring brake and hydraulic release brake, which increases the safety factor and is safe and reliable when working in harsh environment, high water content, and muddy roadways. The use of ergonomics makes the control interface and control method more conducive to underground and tunnel operation.
Technical specification parameters
|
No. |
Item |
Parameter |
|
1 |
Standard bucket volume |
4 m³ |
|
2 |
Rated load |
8000kg |
|
3 |
Carriage unloading angle |
65° |
|
4 |
Approach angle |
15° |
|
5 |
No-load operating weight |
9500kg |
|
8 |
Full load operating weight |
17500kg |
|
9 |
Swinging angle |
±8° |
|
10 |
Minimum ground clearance |
210mm |
|
11 |
Swinging angle |
±8° |
|
12 |
Minimum turning radius |
3400±150mm（inside），5500±150mm（outside） |
|
13 |
Gear |
First gear：0-4.7Km/h Second gear：1-10Km/h Third gear：0-18.4Km/h |
|
14 |
Maximum drawbar pull |
102KN |
|
15 |
System pressure |
Rated pressure of working system：18MPa Rated pressure of steering system：16MPa Rated pressure of braking system：11MPa Rated pressure of oil makeup system：1.69-1.96MPa |
|
16 |
Fuel tank capacity |
Fuel tank：88L hydraulic oil tank：88L
|
|
17 |
Working voltage |
24V |
|
18 |
steering |
Central articulation, full hydraulic power steering |
|
19 |
Dimensions (length x width x height) |
6540x1600x2000mm |
